LE VOYAGEUR LV8.5GJF

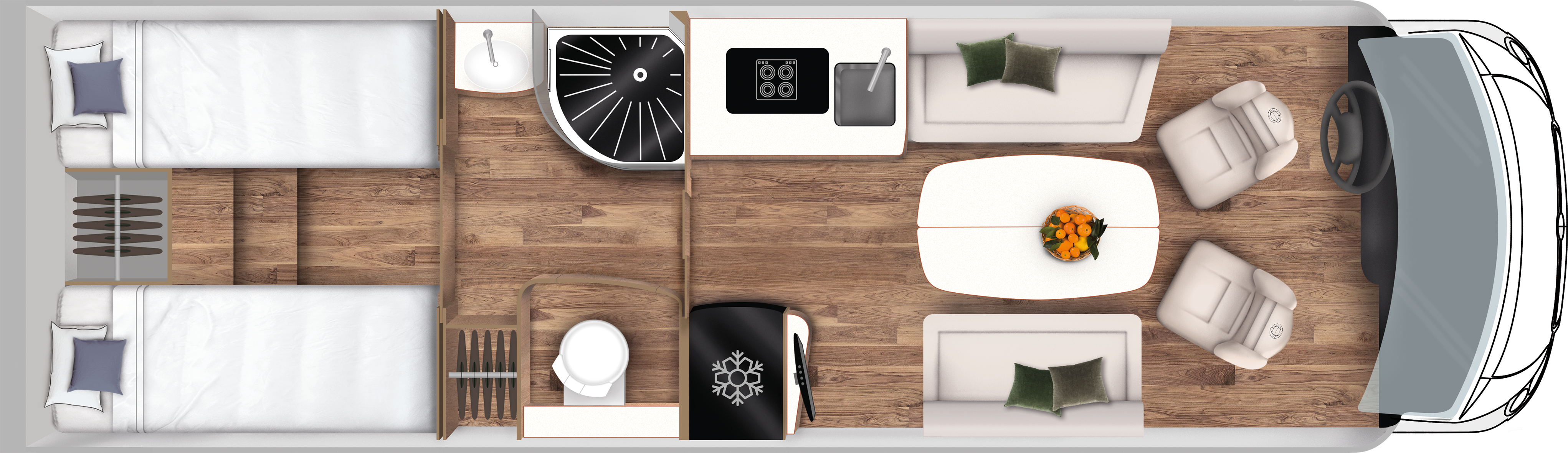

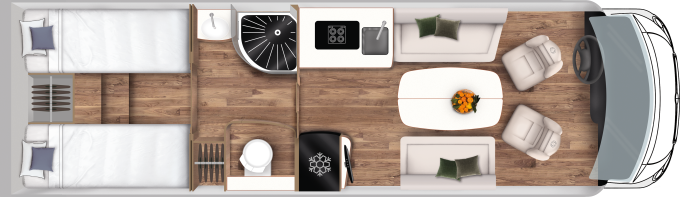

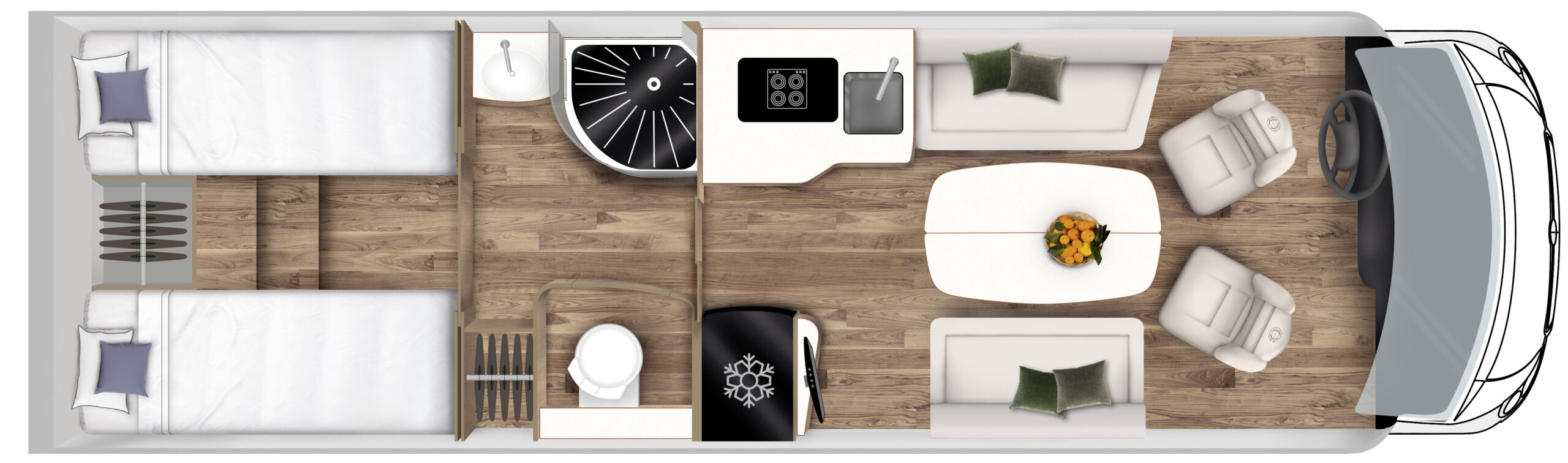

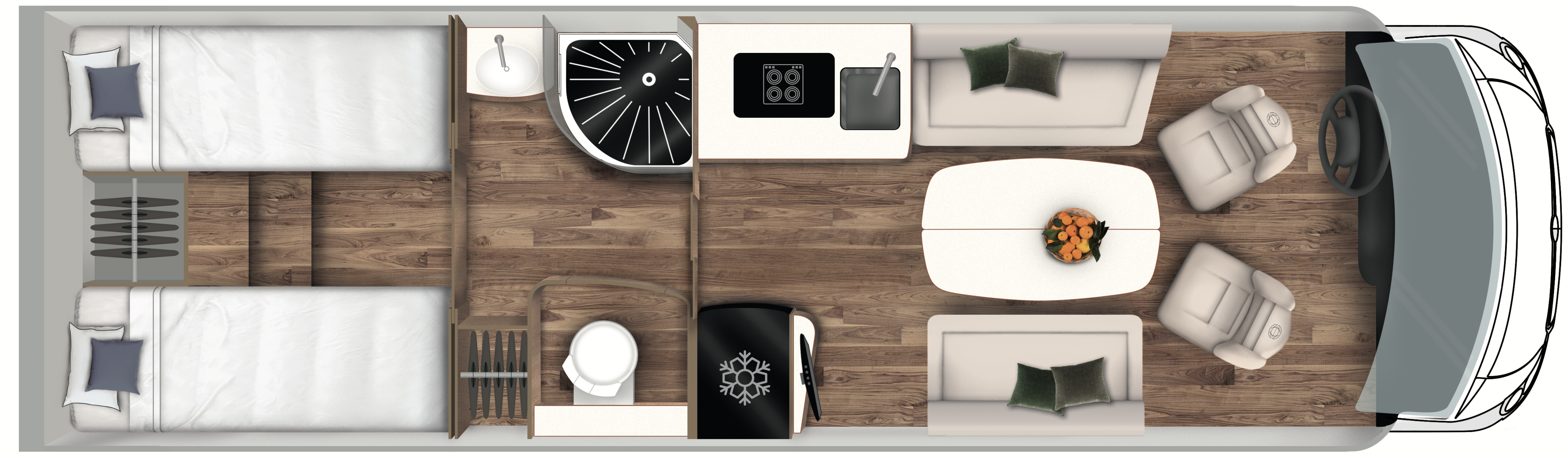

Implantations-LV-8.5GJF-680x199
  • Exceptional payload
  • Wide circulation spaces
  • Large wall-to-wall hold available in two heights
  • Spacious rear bathroom
  • Twin beds with the ability to choose between two bed heights
Dimensions
Length : 8.55 m
Width : 2.24 m
Exterior height : 2.95 m
Interior height : 2 m
Places
Seated places : 4
Sleeping places : 4
Extra sleeping places : 3
Eating places : 6
Seat in : F
Weight
Payload : 880 kg
MTPLM (Gross Weight) : 5000 kg
Information
Chassis : Fiat AL-KO
Side compartement volume : 2800 l

Pictures of the LV8.5GJF

Detailed specifications

  • AUTONOMY
    • Diesel tank capacity in liters
      90L
    • Fresh water maximum in liters
      200L
    • Fresh water maximum when driving in liters
      120L
    • Waste water maximum in liters
      120L
  • DIMENSIONS
    • Overall width (in cm) with external mirrors opened (in cm)
      280
    • Wheelbase (in cm)
      459+80
  • EXTERNAL STORAGE
    • Rear storage hold - in litres (min / max)
      2800
    • Access to right storage hold in cm L x H
      116 x 96
    • Access to left storage hold in cm H x L
      106 x 96
  • INTERIOR
    • Interior height living room (in cm) ?
      200
    • Shower height (in cm)
      190
    • Dimensions of the right seat benches (in cm)
      117
    • Dimensions of Left seat benches (in cm)
      130
    • Maximum TV Dimension in the living room (in inches)
      22
    • Rear permanent bed (in cm)
      800x2000|800x2000
    • Pull-down bed (in cm)
      1400x1900
