LE VOYAGEUR LV7.2GJF

LV7.2GJF-1-626x212
  • 26 cm double floor offering lots of storage and enhanced insulation
  • Large wall-to-wall hold available in two heights
  • Face-to-face bench seat able to accommodate 4 people
  • Twin beds with Bultex mattresses
  • Optional additional sleeping area between twin beds
Dimensions
Length : 7.25 m
Width : 2.24 m
Exterior height : 2.95 m
Interior height : 2 m
Places
Seated places : 4
Sleeping places : 4
Extra sleeping places : 1
Eating places : 4
Seat in : F
Weight
Payload : 920 kg
MIRO without driver : 3505 kg
MTPLM (Gross Weight) : 4500 kg
Information
Chassis : Fiat AL-KO
Side compartement volume : 2800 l

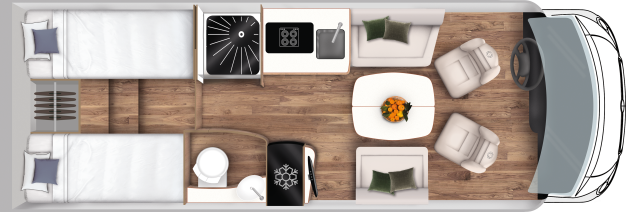

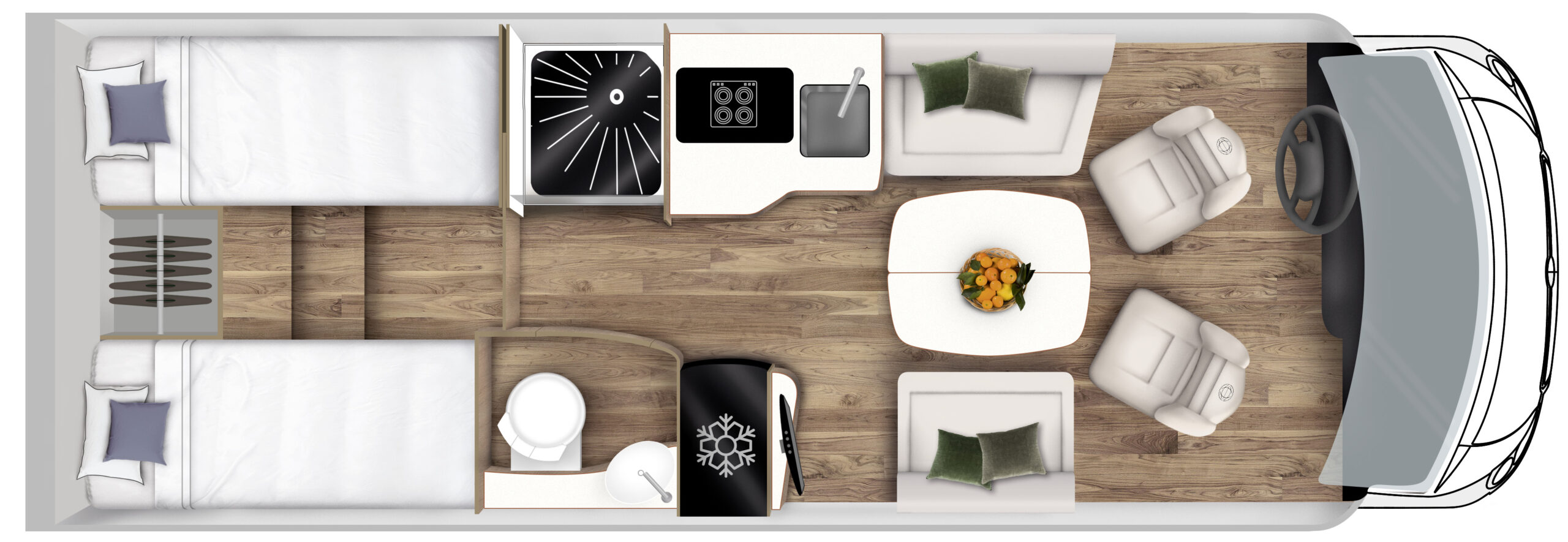

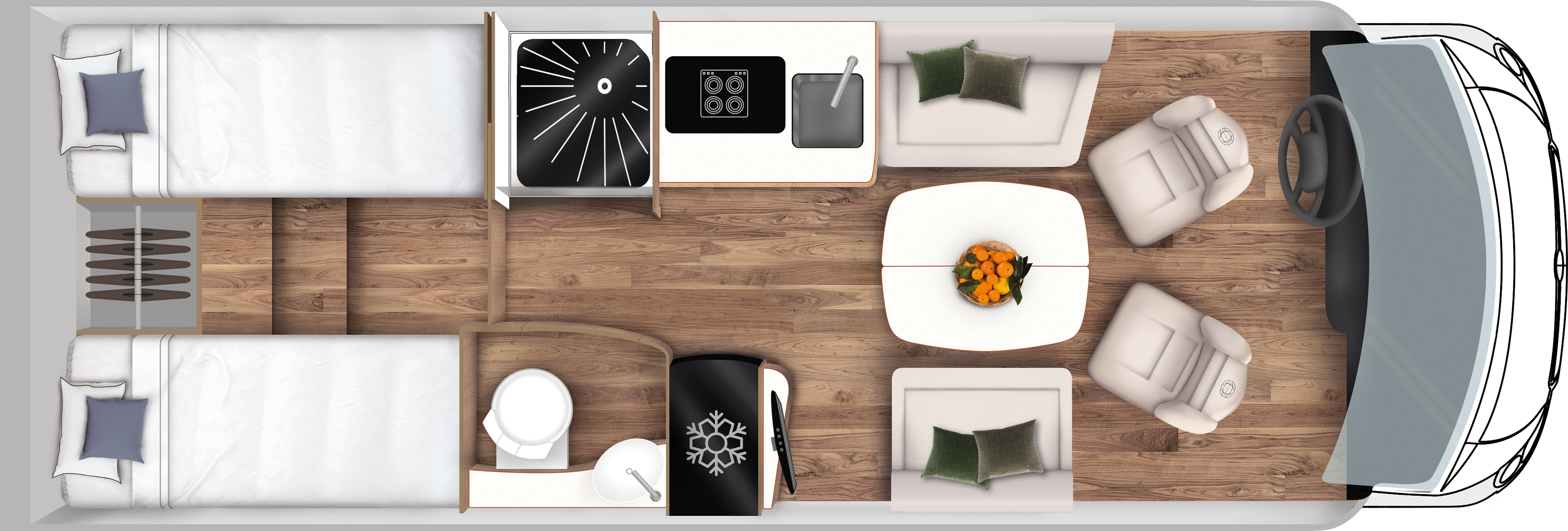

Pictures of the LV7.2GJF

Detailed specifications

  • Type of chassis
    • Chassis
      Mercedes Al-Ko
  • AUTONOMY
    • Diesel tank capacity in liters
      90L
    • Fresh water maximum in liters
      200
    • Fresh water maximum when driving in liters
      20L
    • Waste water maximum in liters
      120L
  • DIMENSIONS
    • Wheelbase (in cm)
      417
    • Rear storage hold - in litres (min / max)
      2800L
    • Access to right storage hold in cm L x H
      116 x 96cm
    • Access to left storage hold in cm H x L
      106 x 96cm
  • INTERIOR
    • Interior height living room (in cm) ?
      200cm
    • Shower height (in cm)
      190cm
    • Dimensions of the right seat benches (in cm)
      80cm
    • Dimensions of Left seat benches (in cm)
      93cm
    • Maximum TV Dimension in the living room (in inches)
      22
    • Rear permanent bed (in cm)
      80x190|80x200cm
    • Pull-down bed (in cm)
      140x190cm
